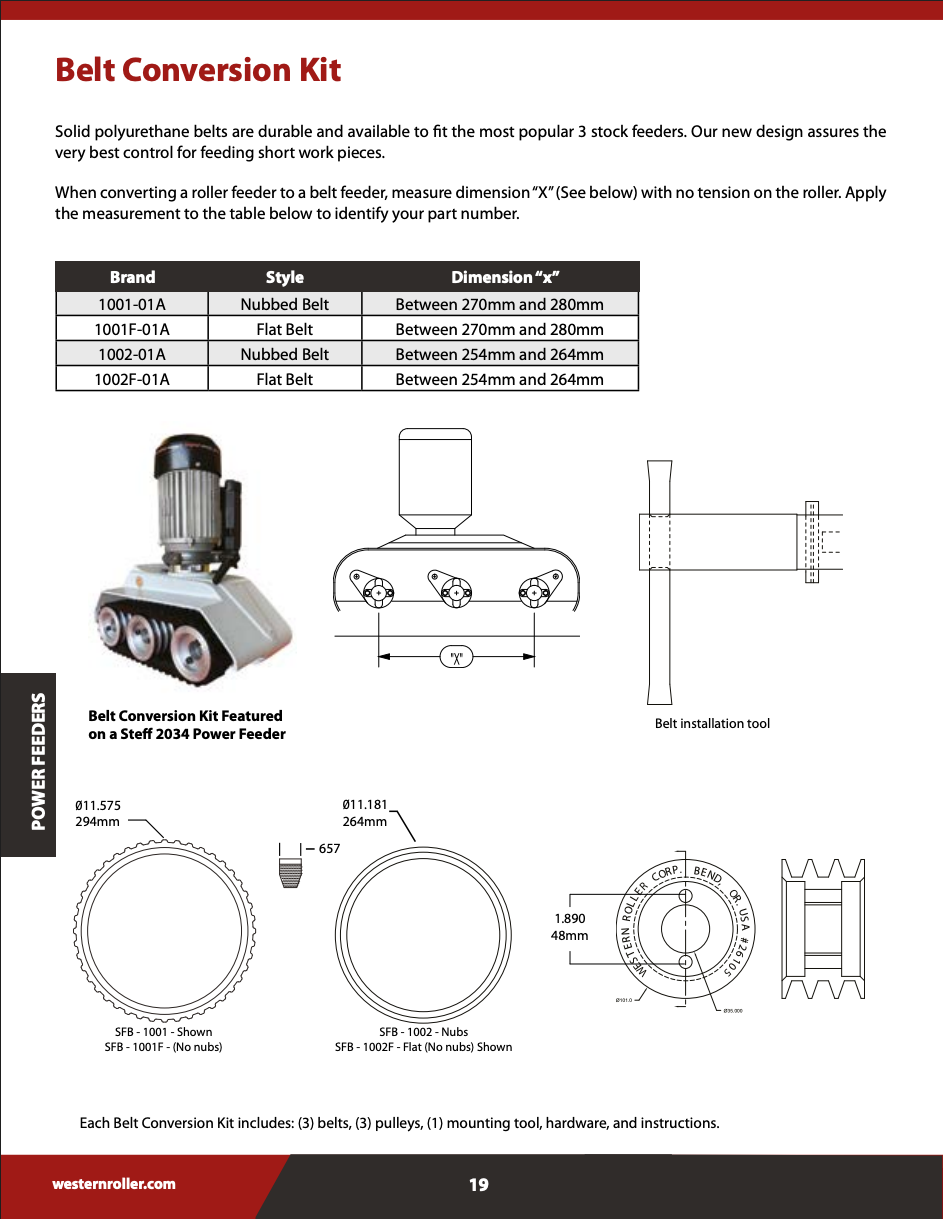

Belt Conversion Kit
Converting a roller feeder to a belt feeder. Measure dimension "X" across the roller centers with no tension on the roller, then read your part number off the table.
Solid polyurethane belts are durable and available to fit the most popular stock feeders. The design gives the best control for feeding short work pieces.
When converting a roller feeder to a belt feeder, measure dimension "X" — shown on the drawing below — with no tension on the roller, and apply the measurement to the table to identify your part number.
| Part | Style | Dimension "X" |
|---|---|---|
| 1001-01A | Nubbed belt | Between 270 mm and 280 mm |
| 1001F-01A | Flat belt | Between 270 mm and 280 mm |
| 1002-01A | Nubbed belt | Between 254 mm and 264 mm |
| 1002F-01A | Flat belt | Between 254 mm and 264 mm |
- Each belt conversion kit includes (3) belts, (3) pulleys, (1) mounting tool, hardware and instructions.
- Belt diameters: SFB-1001 / 1001F is 11.575 in (294 mm); SFB-1002 / 1002F is 11.181 in (264 mm). Pulleys are 1.890 in (48 mm).
- Nubbed belts grip harder; flat belts mark less. Both are the same size in a given kit.
